ELPP Series Filter Cartridge with Electronic Grade Materials for 0.1-25 μm Filtration Precision and High Throughput Nano Fiber Membrane

Name: ELPP Series Filter Cartridge with Electronic Grade Materials for 0125 μm Filtration Precision and High Throughput Nano Fiber Membrane
Brand: Pullner
Price: 1 USD

Buy cheap ELPP Series Filter Cartridge with Electronic Grade Materials for 0.1-25 μm Filtration Precision and High Throughput Nano Fiber Membrane product

Brand Name : Pullner

Model Number : Elpp

Certification : ISO9001/ISO45001/ISO14001

Place of Origin : Shanghai, China

MOQ : 1 pc

Price : Negotiable

Supply Ability : 100 pcs per day

Packaging Details : Export standard packaging

Contact Now

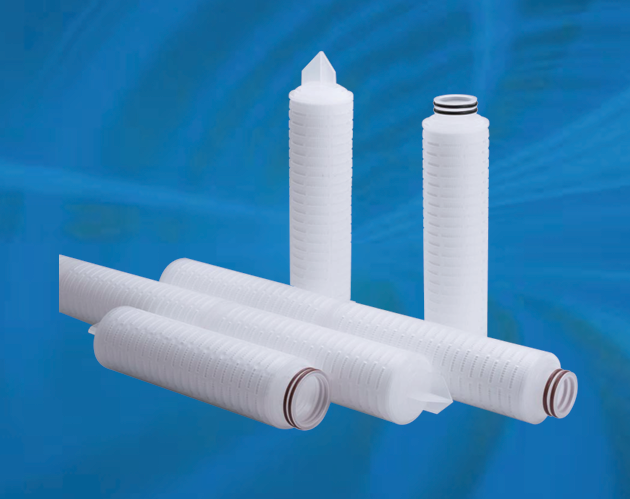

General Description:

The ELPP series filter cartridge, made from electronic grade materials, effectively controls ion extractable issues in ﬁltration. Its pure polypropylene structure gives the ﬁlter cartridge chemical compatibility. Applicable for most acids, alkalines, process water, and organic solvents ﬁltration.

ELPP Series Filter Cartridge with Electronic Grade Materials for 0.1-25 μm Filtration Precision and High Throughput Nano Fiber Membrane

Features:

High‑purity PP material, using a thermal welding process without adhesives, eﬀectively controls ion extractables.
Nano ﬁber membrane material provides high throughput, making the ﬁlter cartridge long‑lasting and cost‑eﬀective.
Oﬀers various ﬁltration precisions from 0.1‑25μm, meeting diﬀerent ﬁltration requirements.

Dimensions

Outer diameter	2.7" (69mm)
Length	10", 20", 30", 40"

Material of Construction

Filter Medium	PP
Support/Drainage	PP
Center core/Outer Cage/End Caps	PP
Seals Material	NBR, Silicone, EPDM, Viton, Teflon

Filter Performance

Removal rating	1um, 2um, 5um,
Max. operating temperature	80℃
Max. operating differential pressure	4.2 Bar @ 25℃
Max. operating differential pressure (Reverse direction)	2.1 Bar @ 25℃
Max. temperature sterilization	30 times, 30 minutes at 121℃

Ordering Information:

ELPP Series Filter Cartridge with Electronic Grade Materials for 0.1-25 μm Filtration Precision and High Throughput Nano Fiber Membrane

Pullner Exhibition

ELPP Series Filter Cartridge with Electronic Grade Materials for 0.1-25 μm Filtration Precision and High Throughput Nano Fiber Membrane

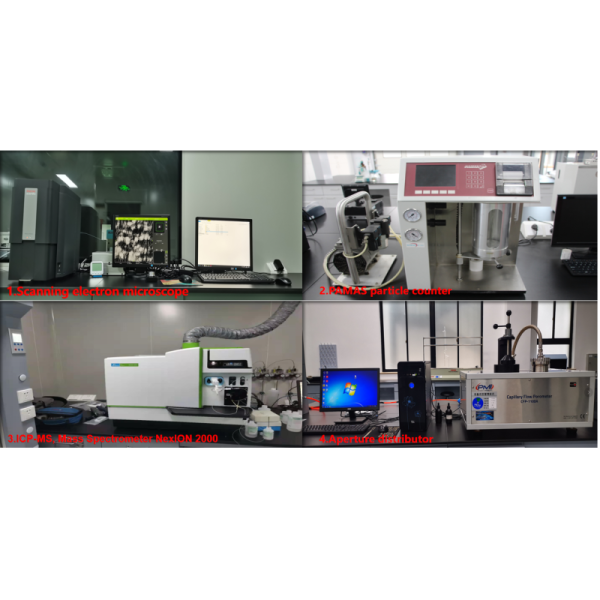

Pullner laboratory:

ELPP Series Filter Cartridge with Electronic Grade Materials for 0.1-25 μm Filtration Precision and High Throughput Nano Fiber Membrane

Delivery&Shipping

ELPP Series Filter Cartridge with Electronic Grade Materials for 0.1-25 μm Filtration Precision and High Throughput Nano Fiber Membrane
